Built with all the same features as the 2.5 smooth body, our 2.5 shocks are threaded and shipped complete with the upper and lower spring perch and spanner.
|
2.5_Coil Over
PT# |
Comp. |
Extended |
Travel |
RodSize |
Remote Res. |
8-1000 |
20.00 |
30 |
10 |
7/8 |
Optional |
8-1200 |
22.00 |
34 |
12 |
7/8 |
Optional |
8-1400 |
24.00 |
38 |
14 |
7/8 |
Optional |
8-1600 |
26.00 |
42 |
16 |
7/8 |
Optional |
8-1800 |
28.00 |
44 |
18 |
7/8 |
Optional |
• To order remote reservoir, Add (REM) to end of PT.NO. - Example: 8-1000REM
• Spring Stack Spacer #SSP-250 sold seperately
• All 2.5 Coil-Overs use 3.0 I.D. Coils (See Coil Spring Application List)
Click Here for Specs

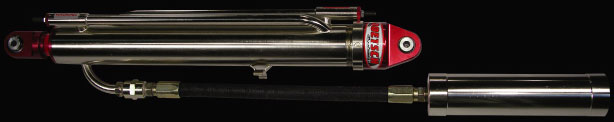

Our 2.5 and 3.0 Bypass Shocks are hand built and made for racing applications. Travels range from 10” to 18”. All 2.5 and 3.0 Bypass Shocks come complete with Remote mounted reservoir. A massive 1” shaft is standard on all 2.5 and 3.0 Bypass Shocks.
|
2.5_Bypass Shock
PT# |
Comp. |
Extended |
Travel |
RodSize |
Remote Res. |
9-1000 |
16.75 |
26.75 |
10 |
1 |
YES |
9-1200 |
19.50 |
31.50 |
12 |
1 |
YES |
9-1400 |
21.50 |
35.50 |
14 |
1 |
YES |
9-1600 |
24.50 |
40.50 |
16 |
1 |
YES |
9-1800 |
26.50 |
44.50 |
18 |
1 |
YES |
3.0_Bypass Shock
PT# |
Comp. |
Extended |
Travel |
RodSize |
Remote Res. |
10-1200 |
22.00 |
34.00 |
12 |
1 |
YES |
10-1400 |
24.50 |
38.50 |
14 |
1 |
YES |
10-1600 |
27.50 |
43.50 |
16 |
1 |
YES |
10-1800 |
30.00 |
48.00 |
18 |
1 |
YES |
• All 2.5,3.0 Bypass come with 2 Comp Tubes & 1 Rebound Tube
• Remote Reservoir Standard on the 2.5,3.0
• Caps and Trim come standard in 3 colors available: Natural / Red / Black - Lead time may be required for certain colors. Subject to stock on hand
Click Here for Specs
|
