Ford SuperDuty F250

HARDWARE KITS
KIT#1=	1 1	1/2” SLEEVE (#1) 12mm SLEEVE (#4)	KIT#6=	1 1	12mm x 2.095 NARROW SLEEVE (T)
KIT#2=	1 1 1 1	10mm SLEEVE (#6) 9/16” SLEEVE (#9) 1/2x2.235 ext SLEEVE (C-2) 3“ CROSSPIN (#7)	KIT#8=	1 1	3/4” I.D. BUSHING (#3) 16mm I.D. SLEEVE (Q)
KIT#3=	1	3/4” I.D. BUSHINGS (#3)	KIT#9=	1 1	5/8” CHEVROLET OE MOUNT BOLT (P-19)
KIT#5=	1	2.50” CROSSPIN (#5)	KIT C-1= KIT#1=	1 1	2.50” ext. LATE CHEVY UPPER MOUNT
NOTE: Numbers in ( ) refer to individual piece PT.#’s

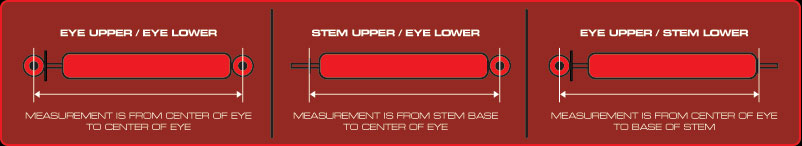

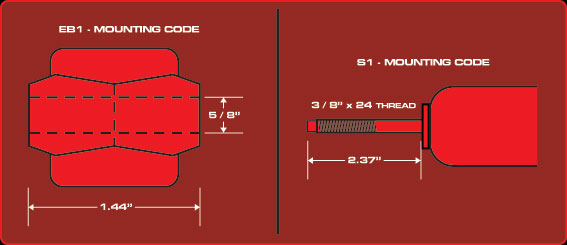

DT3000	8000 Pre-Runner	9000 Nitrogen	Extended Length	Collapsed Length	Mount. Code Upper	Mount. Code Lower	Hardware Kits Included
-	-	M-9035	13.50	9.00	S1	EB1	1
-	-	M-9039	13.50	9.00	S1	EB1	1,5
-	-	M-9044	13.50	9.00	S1	EB1	1,6
S-3035	S-8035	S-9035	13.50	9.00	S1	EB1	1
S-3039	S-8039	S-9039	13.50	9.00	S1	EB1	1,5
S-3044	-	-	13.50	9.00	S1	EB1	1,6
S-3809	-	-	13.50	9.00	EB1	EB1	1,9
S-3078	S-8078	S-9078	14.50	9.50	S1	EB1	1,5
S-3087	S-8087	S-9087	14.50	9.50	S1	EB1	1,6
S-3803	-	-	14.50	9.50	EB1	EB1	1,9
3052	8052	9052	15.50	10.00	EB1	EB1	1,9
3069	8069	9069	15.50	10.00	S1	EB1	1
3073	8073	9073	15.50	10.00	S1	EB1	1,5
3075	8075	9075	15.50	10.00	S1	EB1	1,2
3434	8434	9434	15.50	10.00	S1	EB1	1,8
3900	8900	9900	17.50	11.50	EB1	EB1	1,C1
3906	8906	9906	17.50	11.50	EB1	EB1	1
3923	8923	9923	17.50	11.50	S1	EB1	1
3095	8095	9095	18.50	11.50	EB1	EB1	1,9
3112	8112	9112	18.50	11.50	S1	EB1	1
3122	8122	9122	18.50	11.50	S1	EB1	1,8
3129	8129	9129	19.50	12.50	EB1	EB1	1,2
3135	8135	9135	19.50	12.50	EB1	S1	1
3146	8146	9146	19.50	12.50	S1	EB1	1
3155	8155	9155	19.50	12.50	S1	EB1	1,6
3856	8856	9856	19.50	12.50	S1	S1	-
3163	8163	9163	21.50	13.00	EB1	EB1	1,2
3166	8166	9166	21.50	13.00	EB1	EB1	1,2,3
3180	8180	9180	21.50	13.00	S1	EB1	1
3182	8182	9182	21.50	13.00	S1	EB1	1,8
3184	8184	9184	21.50	13.00	S1	EB1	1,5
3189	8189	9189	21.50	13.00	S1	EB1	1,6
3259	8259	9259	21.50	12.00	S1	S1	-
3231	8231	9231	22.50	13.50	EB1	EB1	1,2
3234	8234	9234	22.50	13.50	EB1	EB1	1,2,3
3248	8248	9248	22.50	13.50	S1	EB1	1
3250	8250	9250	22.50	13.50	S1	EB1	1,8
3252	8252	9252	22.50	13.50	S1	EB1	1,5
3257	8257	9257	22.50	13.50	S1	EB1	1,6
3265	8265	9265	24.50	14.50	EB1	EB1	1,2,9
3268	8268	9268	24.50	14.50	EB1	EB1	1,2,3
3277	8277	-	24.50	14.50	EB1	EB1	1,3
3282	8282	-	24.50	14.50	S1	EB1	1
3293	8293	-	23.50	13.50	S1	S1	-
3333	8333	-	26.50	15.50	EB1	EB1	1,2
3336	8336	-	26.50	15.50	EB1	EB1	1,2,3
3350	8350	-	26.50	15.50	S1	EB1	1
3352	8352	-	26.50	15.50	S1	EB1	1,8
3361	8361	-	25.50	14.50	S1	S1	-
3368	8368	-	29.50	17.00	EB1	EB1	1,2
3371	8371	-	29.50	17.00	EB1	EB1	1,2,3
3386	8386	-	29.50	17.00	S1	EB1	1
3385	8385	-	28.50	16.00	S1	S1	-
3403	8403	-	32.00	18.50	EB1	EB1	1,2
3407	8407	-	32.00	18.50	EB1	EB1	1,8
3421	8421	-	32.00	18.50	S1	EB1	1
3420	8420	-	31.00	17.50	S1	S1	-
3600	-	-	36.00	20.50	EB1	EB1	1,2

Extended and Collapsed lengths shown are for DT3000 Series Shocks others maybe slightly different.
Lowered Truck Shock specifications are listed in Shock App. Guide
Call for Specs on Shocks not listed on this page.
