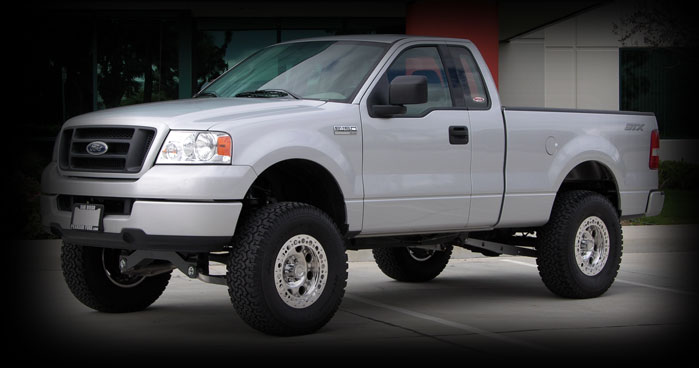

Our 04’ and up F150 2WD kit 6/3 lift, comes with front and rear drop down brackets for the lower control arms, the stock Coil-Over unit is re-located down using a Double Plated Tubing Spacer. The steering and upper arm is kept in a neutral position using a new Ductile Machined Spindle. Rear Strut bars add strength to the lower brackets. This kit comes complete with shocks and there is no cutting or welding. This truck is equipped with 35x12.50 BF Goodrich Tires (LT 315/70R17) and American Racing “Mojave” Wheels 17x8 with 4 1/2” Backspacing. *Complete Front Coil-Over System available PT# 63078
|
Ford F150_
2WD Suspension Systems
PT# |
Application |
Lift |
Spindle |
Drop Down
Bracket |
Coil
Spacer |
Coil
Over |
Rear
Block Kit |
Shock
Pack |
Price
|
63078 |
04’-06’ F150 |
7/4 |
63077-2 |
63077-1 |
- |
X03205 |
63077-5 / 62039* |
63077-6 |
$2,708.25 |
63077 |
04’-06’ F150 |
6/3 |
63077-2 |
63077-1 |
- |
- |
63077-5 |
63077-6 |
$1,431.99 |
63074 |
04’-06’ F150 |
3/-1 |
- |
- |
MO5657 |
- |
62040* |
YES |
$232.82 |
63073 |
04’-06’ F150 |
2/0 |
- |
- |
MO5657 |
- |
- |
YES |
$154.95 |
* 63078 Kit Includes complete bolt in Coil Over with Coils (No Welding)
* 62039-2 Is a 1” Lift Shackle
* 62040 Is a Minus 1” Lowering Shackle, Lowering the rear adds height to the front.
 Kit # 63047
3/1 Lift Info
This 3/1 kit contains 2” front spacers, 1” rear lower shackle and 2 - DT3000 Shocks
|
|
