Ford

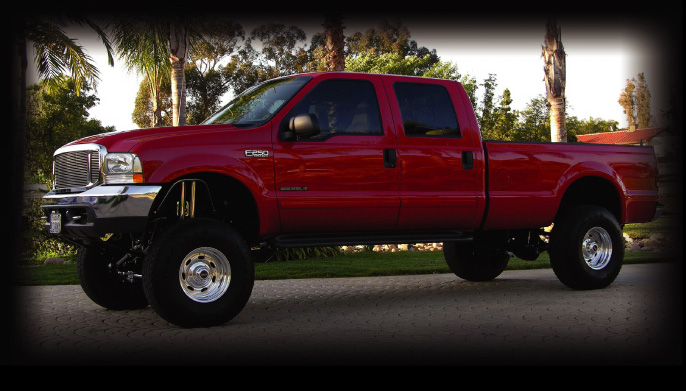

• Model shown is a 2003 4WD with a 6” Lift
• Shock Hoop shown above PT# 74016SH

Our Ford kits are designed using a lower I-Beam drop bracket, these kits come complete with everything you need including a steering pitman arm. Please specify cab and motor size at the time of ordering. All F250 and Superduty kits include front Gas shocks and Rear DT3000.

Ford SuperDuty / F250_
2WD Suspension Systems

PT#	Application	Lift	Motor	Pitman Arm	Drop Down Bracket	Coils	Ball Joints	Add A-Leaf	Shock Pack	Price
63096	00’-04’ SuperDuty	6/3	V-10	Yes	52602	24615	-	13128	Yes	No Longer Available
63097	00’-04’ SuperDuty	6/3	Diesel	Yes	52602	24613	-	13128	Yes	No Longer Available
63098	80’-89’ F250	6/3	V-8	Yes	52602	24614	-	13128	Yes	No Longer Available
63099	80’-89’ F250	6/3	Diesel	Yes	52602	24615	-	13128	Yes	No Longer Available

Kit # 63096
Lift Info - Ride Quality (GOOD)

This kit contains 6” Lift Coils, I Beam pivot brackets, Radius Arm drop brackets, Sway bar support. Rear uses Add A Leaf and a Block kit. This kit comes standard with Monotube Shocks.

*Note: Installation requires a new Pitman Arm. Production date prior to April 1, 1999 use PT# FD400. After April 1, 1999 use PT# FD600.
